Safety Valve Model 51

Safety valve at 90º between the inlet and the outlet connections, full nozzle and direct action and spring loaded, with pop action and full lift.

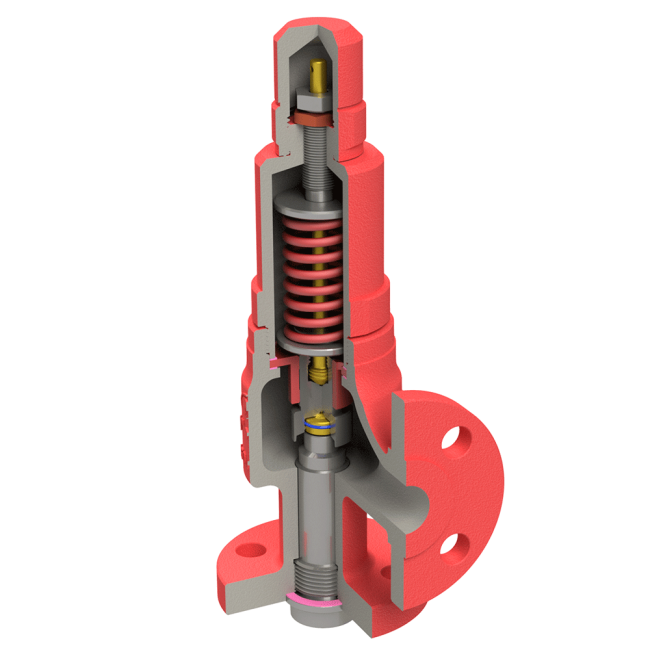

MOD.51 Flanged
MOD.51 Flanged



Sizes:

ANSI: From 1/2" x 3/4" up 1" x 1"

DIN: From DN15x25 up to DN25x25

Thread & Flanged connections:

NPT Threaded according to ASME B1.20.1

BSPP Threaded according to ISO 228-1

ASME Flanged according to ASME B16.5

Flanges rating:

ANSI

Inlet 150 ÷ 1500#

Outlet 150 ÷ 300#, ASME 16,5

DIN

PN10 up to PN320

Materials:

Carbon steel, stainless steel, and special alloys (A352 LCB, A351 CF10MC etc.)

Certification:

ASME UV

MOD.51 Flanged
MOD.51 Flanged

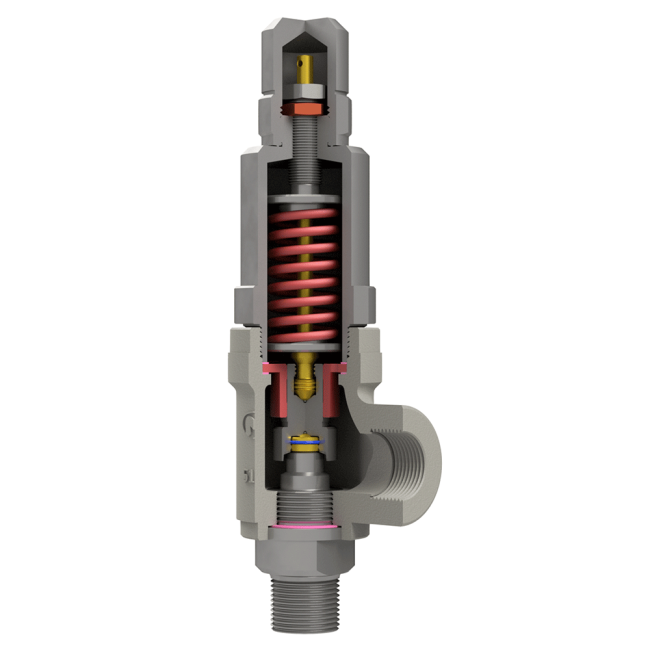

MOD.51 Threaded
MOD.51 Threaded
