Safety valve Model 64

Safety valve 90º angular type of rapid opening (pop action), full nozzle, and spring loaded, adjusting ring, conventional or balanced.
Safety valve Model 64



Design:

EN ISO 4126-1 | ASME VIII | API-526 | ASME B16.34

Sizes:

from 1” x 2” up to 12” x 16”

Flanges  rating:

Inlet 150 ÷ 2500#

Outlet 150 ÷ 300#

Also supplied with DIN flanges.

Materials:

Carbon steel, stainless steel and special alloys.

(Hastelloy, Inconel, Duplex, Super duplex, etc.)

Available models:

64LC, 64GC, 64GF, 64LF.

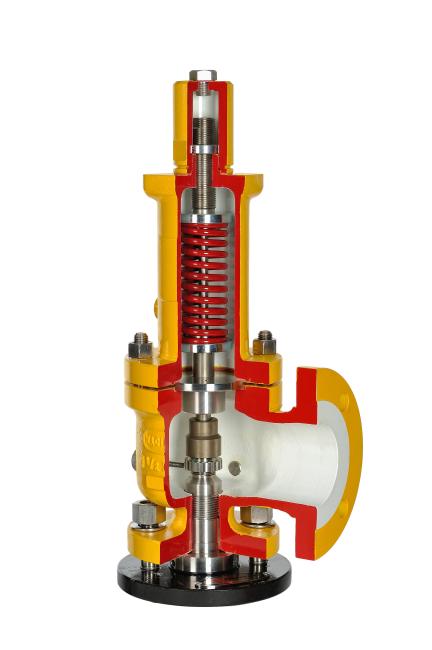

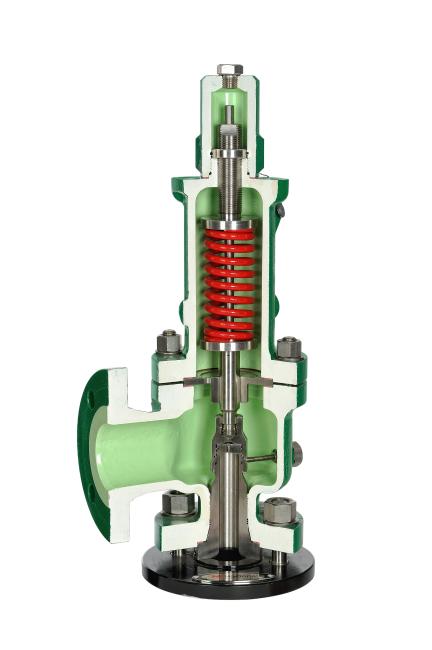

Safety valve 64LC
Safety valve 64LC

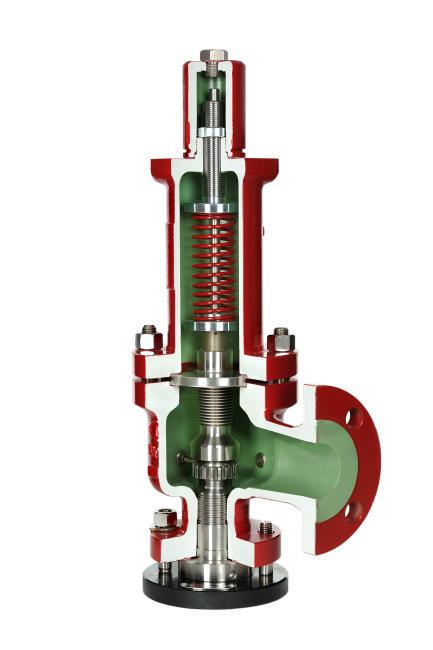

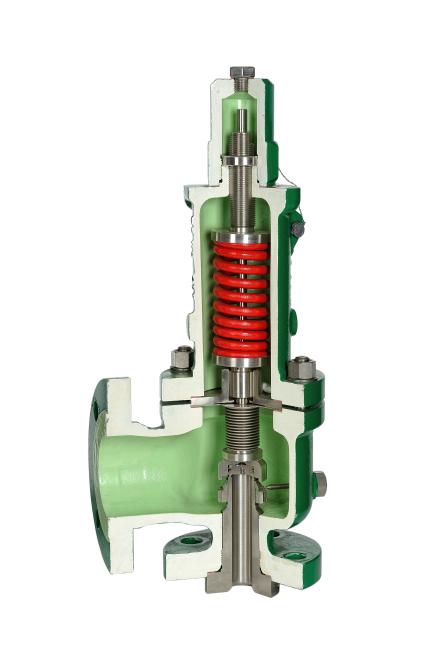

Safety valve 64GF
Safety valve 64GF

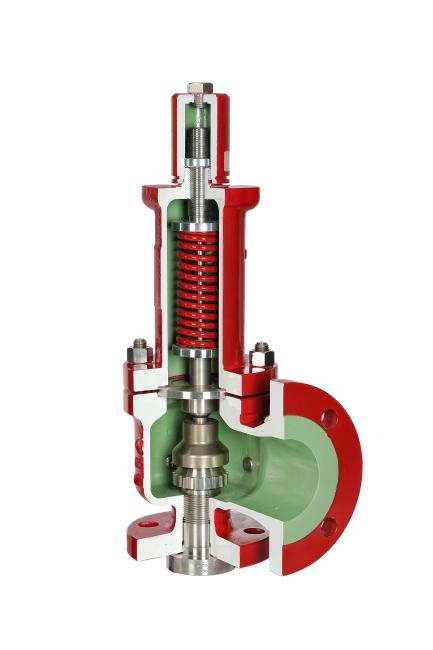

Safety valve 64GC
Safety valve 64GC
Safety valve 64GF
Safety valve 64GF

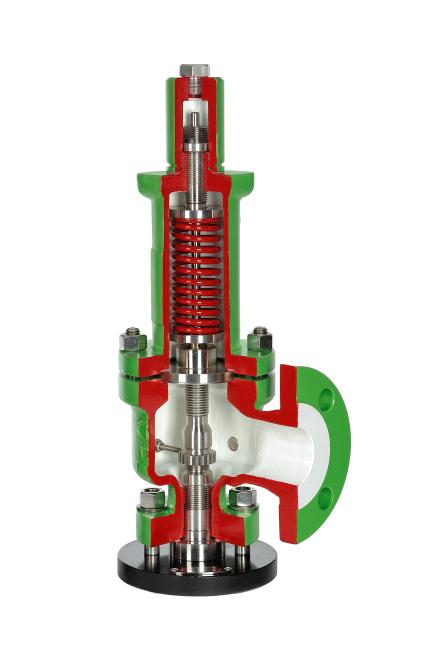

Safety valve 64LF
Safety valve 64LF
Safety valve 64LC
Safety valve 64LC
